Introduction of Wika company:
Wika company, producer of Wika gauge, was established in Germany in 1946.
At first it was a family business, but now it is one of the largest manufacturers of temperature and pressure gauges worldwide.
* features
Wika gauge has the highest standards in the field of quality and Wika company is very important for this issue.
Attention has been paid to details in the production of Wika gauge. Measuring gauges must be efficient even in extreme conditions and perform ideally in all applications.
* Trading Company
Wika company can be said to have achieved its goal only when a product is completely reliable, powerful and efficient.
Success considers success as its own success.
Wika’s products are technical eyes and phones, so they become very important for optimizing processes, although sometimes the size of our products is very small, but they bear a great responsibility. us.
* Certificates and approvals
Wika gauges have certificates and approvals for use all over the world.
wika company’s measurement laboratories provide the most accurate information to wika company and customers.
* Services
Wika’s global services are designed to meet local needs while also meeting global international standards.
Decades of experience are the foundation of Wicca’s performance, from standard products to the development of special programs that are found to provide the best solution for all important needs.
Wika uses its expertise and experience to serve its customers and are working hand in hand for success.
* Representation
Wika company has representatives in many countries of the world, but due to the embargo, Wika is not officially represented in United Arab Emirates.
Alkahroba company is fully specialized in the field of supplying Wika equipment.
We are part of your business
We are the authors of our industry.
* Several models of Wika pressure gauge
Wika pressure gauge 232.50.16
Wika pressure gauge 233.50
Wika pressure gauge 213.53.50
Wika pressure gauge 111.10.160
Some Of The Products

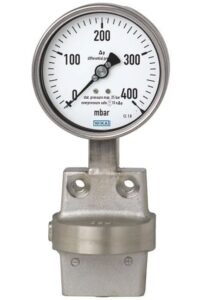

* Models 732.31, 733.31, 732.51, 733.51
Type:
Pressure difference gauge
Product features:
Differential pressure measurement range from 0…16 mbar to 0…40 bar or from 0…10 inH2O to 0…600 psi
High working pressure (static pressure) up to 40 bar [600 psi] – High load safety up to 40 bar [600 psi] – Models 732.31 and 733.31: Frame with safety level “S3” according to EN 837
Fully welded media housing
Technical specifications for both models 732.31 and 733.31 are:
Box with safety level “S3” according to EN 837 standard
Differential pressure measurement range: from 0…16 mbar to 0…40 bar or from 0…10 inH2O to 0…600 psi
High working pressure (static pressure) up to 40 bar or 600 psi
High load safety up to 40 bar or 600 psi
Fully welded media housing using stainless steel

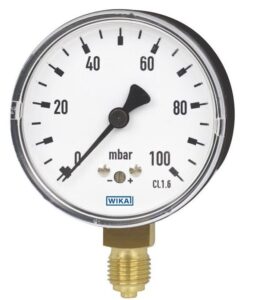

* Models 611.10 and 631.10
Capsule pressure gauges are made of copper alloy or stainless steel.
Their standard version comes in sizes NS 50 [2 in] and 63 [2.5 in].
They have special features including zero point adjustment on the front, special connection on request and small measurement ranges from 0…25 mbar to 0…600 mbar or 0.10 in. water to 0..240 in. water.
The modular design allows for multiple combinations of enclosure materials, process connections, nominal sizes, and scale ranges.
Their frame is made of steel (black) with an openable window and the process connection material is made of copper alloy.
For installation in control panels, capsule pressure gauges can be mounted, depending on the process connection, with a mounting flange or with a triangular profile ring and bracket.
Scale ranges from 0 … 25 mbar to 0 … 600 mbar or 0 … 10 inches of water to 0 … 240 inches of water and vacuum and +/- ranges provide the required measurement ranges for a wide variety of applications.

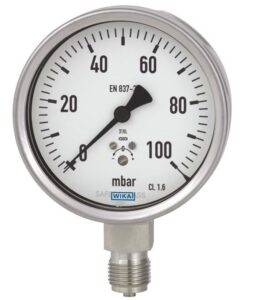

* Models 632.50 and 633.50
Capsule manometers are completely made of stainless steel and therefore suitable for industrial applications.
Their standard version comes in sizes NS 63 [2.5 inches], 100 [4 inches], and 160 [6 inches].
They have special features including zero point adjustment on the front, completely stainless steel construction and small measurement ranges from 0…2.5 mbar to 0…600 mbar or 0…1 inch water to 0…240 inch water.
The modular design allows for combinations of housing materials, process connections, nominal sizes, and scale ranges.
For installation in control panels, capsule pressure gauges can be mounted, depending on the process connection, with a mounting flange or with a triangular profile ring and bracket.
Model 633.50 with a liquid-filled chamber is suitable for dynamic pressure loads and high vibrations.
Scale ranges from 0 … 2.5 mbar to 0 … 600 mbar or 0 … 1 inch of water to 0 … 240 inches of water and vacuum and +/- ranges provide the measurement ranges needed for a wide variety of applications.

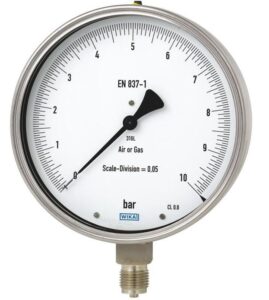

* Models 332.30 and 333.30
The test pressure gauges are made of stainless steel.
Their safety version has a solid separation wall (Solidfront) which is designed according to the requirements of EN 837-1 and ASME B40.100 standards.
Completely made of stainless steel.
Has blade edge indicator for higher reading accuracy.
Precise wear-resistant movement made of stainless steel.
Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 … 10 psi to 0 … 20,000 psi].
The test pressure gauge with an accuracy class of 0.6 is suitable for testing industrial pressure gauges or precise measurements in laboratories.
If required, an accuracy class of 0.25 is possible at pressures less than 400 bar [6,000 psi].
The wetted parts and the frame are made of high quality stainless steel.
WIKA manufactures and certifies pressure gauges according to EN 837-1 and ASME B40.100 standards.
This safety version includes an anti-shock window, a rigid partition between the measuring and numbering system.
In the event of a malfunction, the operator is protected from the front as media or parts can only be removed through the back of the frame.

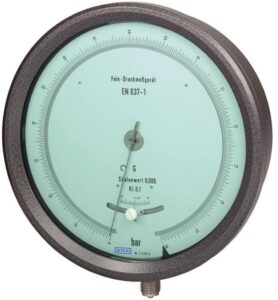

* Models 342.11
It is a test pressure gauge (test gauge).
Accuracy class 0.1 with NS 250 size is used along with a carrying case and acceptance test certificate.
It has a blade edge indicator and a scale with a mirror bar for higher accuracy in reading.
Very readable scale due to nominal size 250.
Scale ranges from 0 to 1,600 bar.
The design according to EN 837-1 includes a carrying case and an acceptance test certificate (a separate list of calibration points).
It has an accuracy class of 0.1 for scale ranges less than 0…400 bar and an accuracy class of 0.25 for scale ranges equal to or larger than 0…400 bar.
Scale ranges from 0 … 1.0 to 0 … 1,600 bar or other equivalent combined pressure and vacuum ranges.
Compressive limit: strength: full-scale indicator value, fluctuation: 0.9 times full-scale indicator value.
Permissible temperature: environment: -20 … +60 °C, environment: maximum +100 °C.
Effect of temperature: when the temperature of the measuring system is lower or higher than the reference temperature (+20 °C): max. ±0.1 %/10 K of the full-scale indicator value.
Protection against intrusion: IP54 according to IEC/EN 60529 standard.

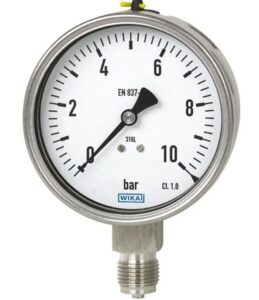

* Models 232.30 and 233.30
The safety version with a solid separation wall (Solidfront) designed according to the requirements of EN 837-1 and ASME B40.100 standards.
High stability in cyclic loading and shock resistance.
Model 233.30 has liquid filling, which is suitable for dynamic pressure loads and high vibrations.
EMICOgauge version to prevent the influence of publications.
Scale ranges from 0…0.6 to 0…1,600 bar [0…10 to 0…20,000 PSI].
This high quality Bourdon tube pressure gauge is designed to meet the highest safety requirements in the process industries.
The use of high-quality stainless steel materials and robust design is suitable for chemical industry and process engineering applications.
Therefore, this tool is suitable for liquid and gaseous media, even in corrosive environments.
The scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 … 10 to 0 … 20,000 psi] cover the measurement ranges required for a wide variety of applications.
WIKA has manufactured and approved this pressure gauge according to EN 837-1 and ASME B40.100 standards. The safety version includes a shatterproof window, a rigid partition wall between the measuring and numbering system.
In the event of a malfunction, the operator is protected from the front because media or parts can only be removed through the rear of the frame.
